Accessories
Explore the detailed specifications and features of our professional accessories, designed to extend the versatility, precision, and performance of your MadEdge sharpening system.

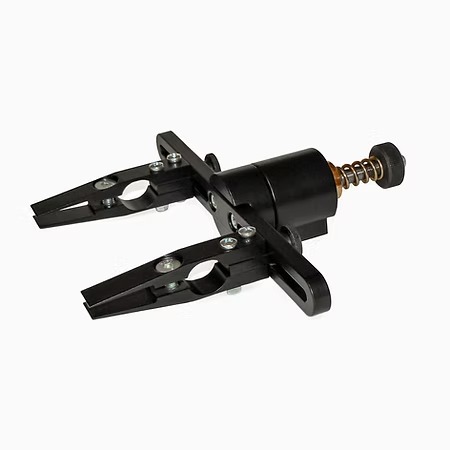

MadEdge Rotary Mechanism Model 1
Price: $80
Key Features
- Dual symmetrical fixed rotary positions for consistent setup.
- Easy rotation despite a powerful spring, eliminating the need to pull the mechanism.
- Adjusting nut to modify spring compression force.
- All rubbing parts are hardened steel for maximum service life.
- Wear-resistant polymer coating (similar to car wheels).
Technical Specifications & Notes
- Rotary frame length: 200 mm.
- Clamping jaws are heat-treated steel with an 8-degree slant per side.
- Supports sharpening angles up to 12 degrees per side.
- Spherical nut in clamps compensates for screw misalignment with thin knives.
- Minimum blade length for two clamps: ~80 mm.

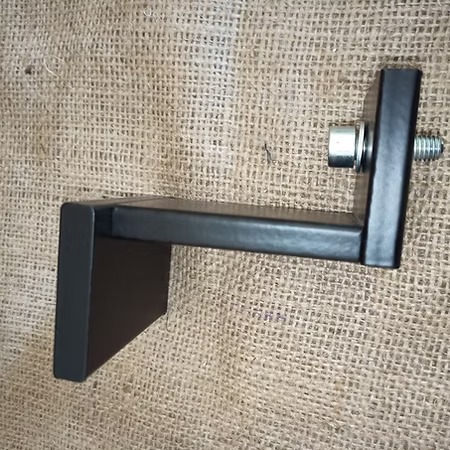

Table Mount
Price: $16
Key Features
- Provides a stable and secure base for the sharpening system.
- Designed to firmly clamp the MadEdge system to any horizontal surface.
Technical Specifications & Notes
- Ensures maximum rigidity and minimizes vibration during operation.

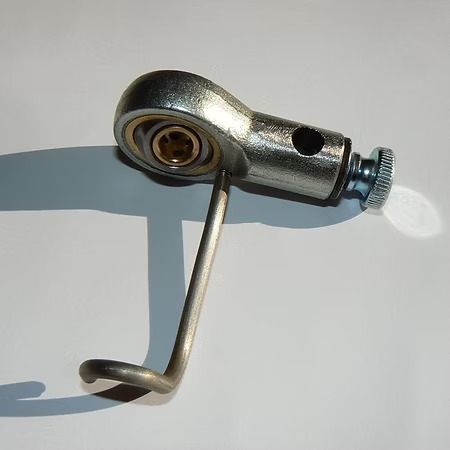

Hinge with Rest Hook
Price: $10
Key Features
- Hole diameter: 8 mm.
- Features a pressed-in sleeve made of anti-friction bronze.
Technical Specifications & Notes
- The bronze sleeve guarantees increased smoothness of movement, crucial for angle consistency.

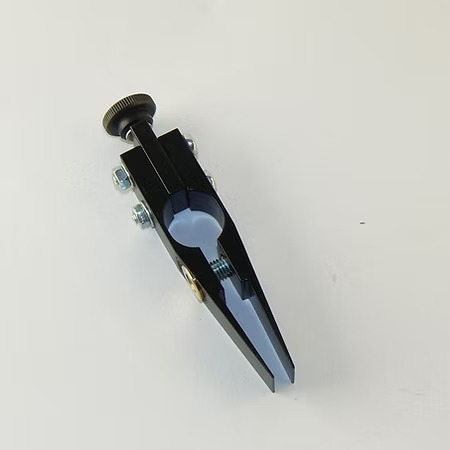

MadEdge Clamp for Full Flat
Price: $23
Key Features
- Made of heat-treated spring steel for optimal strength and retention.
- Specifically designed for securely fixing knives with a full flat grind.
Technical Specifications & Notes
- Ensures even pressure and prevents blade damage.
- Price listed is for 1 pc. A pair of clamps costs $46.

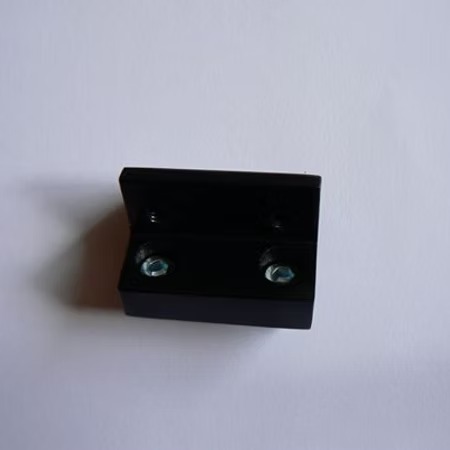

Adapter for Sharpening Flat Chisels
Price: $13
Key Features
- Expands the MadEdge system capability to include flat chisels.
- Provides the necessary rigid and straight fixation for chiseled edges.
Technical Specifications & Notes
- Allows non-knife tools to be sharpened with high precision.

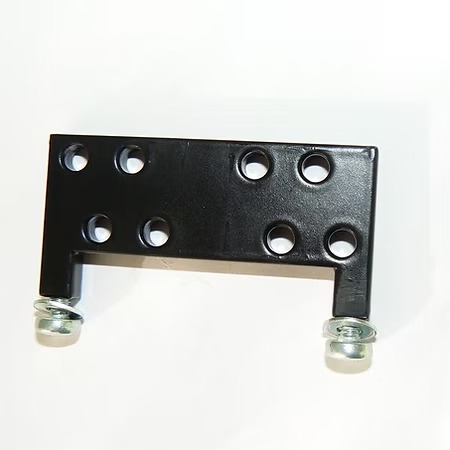

Center Clamp Adapter
Price: $10
Key Features
- Enables closer positioning of clamps for sharpening short blades.
- Ensures a rigid fixing position even at minimal clamp spacing.
Technical Specifications & Notes
- Note: Adapter is sold without clamps.
Hinge for Convex
Price: $9
Key Features
- Specialized hinge for sharpening knives with a convex (lenticular) edge.
- Allows for the controlled movement necessary to achieve a perfect convex profile.
Technical Specifications & Notes
- All parts are constructed from durable steel.

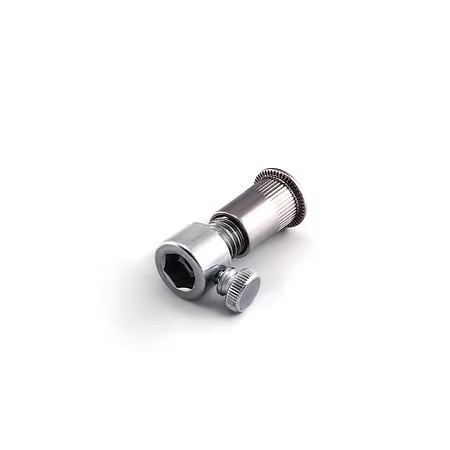

Fine-Tuning Adapter
Price: $4
Key Features
- Simple tool for precisely adjusting and maintaining the sharpening angle.
- Hole diameter: 8 mm.
Technical Specifications & Notes
- A crucial element for achieving micro-bevels and final sharpening accuracy.
Commitment to Authenticity
At MadEdge, we guarantee that all products and accessories listed here are 100% original, proprietary designs. We are committed to manufacturing tools of the highest quality using our exclusive materials and engineering processes. When you choose MadEdge, you are investing in an authentic, precision sharpening system built for reliability and performance. We do not sell copies or third-party imitations.
